The Eyeonic Edge™
The Eyeonic Edge product family delivers 4D vision for inspection of large items at distances of up to 10 meters.
AI Machine Vision Starts Here
The AI Era of Automation Begins with Smarter Vision

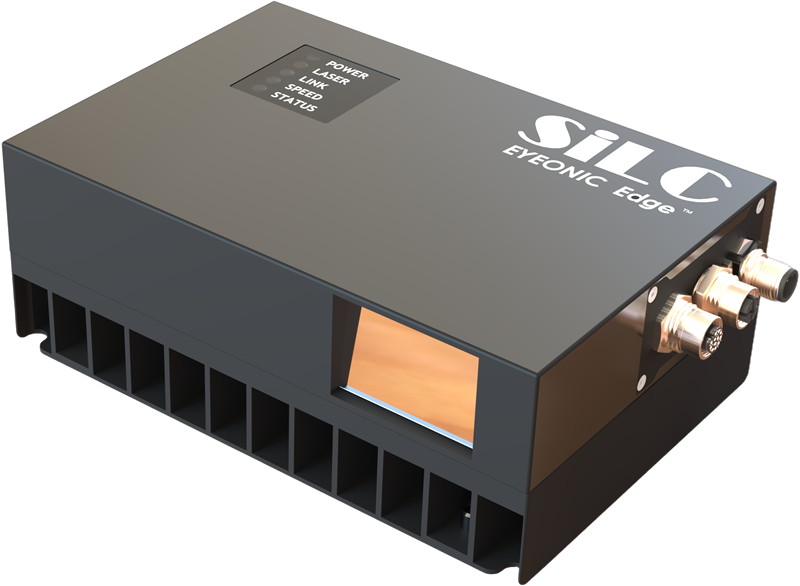

Eyeonic Edge™ 4D Vision Sensor
Eyeonic Edge Redefines Industrial Automation with 4D Vision
Features:- Two Versions Available: Edge and Edge Ultra
- High Precision: <1mm even on low-reflectivity targets
- Long operating range: Edge up to 10 meters; Edge Ultra up to 5 meters
- Range precision: Edge 200 μm; Edge Ultra 100 μm
- Software-defined field of view: Up to 40° × 40°
- Fast measurement rate: 1M points/sec
- Eye safe: Class 1 laser product
- Works in all lighting conditions
- Immune to Interference
- 4D data: Instantaneous velocity is measured for each point
- Polarimetry & Material Classification
High Precision 4D Inspection
Sub-Millimeter Range Resolution. Up to 10 Meters Away
The Eyeonic Edge product family brings advanced 4D vision sensing to industrial automation and manufacturing environments, enabling inspection and quality control of large objects. Easily mounted over conveyor belts and robotic arms, Edge features a long operating range, from .25 meters to 10 meters, and a large 40×40 FOV with real-time region of interest (ROI) and zooming capabilities. Eye-safe and unaffected by challenging lighting conditions, from dark and dusty facilities to bright outdoor sunlight.
Applications
Vehicle inspection and assembly
Aerospace and shipbuilding manufacturing
Large assembly manufacturing
Construction and architectural layouts
Car rental vehicle scanning
Mining equipment inspection
